Станция СПГ

high precision Single-Line and Single-Hose LNG Dispenser with high quality

Все категории

Другие продукты

Свяжитесь мы

Mrs. Emma

shixr@hqhp.cn

+8615928541573

Контакт теперь

high precision Single-Line and Single-Hose LNG Dispenser with high quality

Подробная информация

Характер продукции

Подробная информация

Наименование продукта:

Диспенсер СПГ

OEM:

Да, да.

Сценарий применения:

Станция СПГ

Настраиваемый:

Да, да.

Качество:

Высокий

Жизненный цикл:

Длинный

Характер продукции

LNG general-purpose intelligent gas filling machine adopts our company’s self-developed microprocessor control system, which is a kind of gas metering equipment for trade settlement and network management and high safety performance, mainly used for LNG gas filling station for LNG vehicle metering and refueling.

Product features
Specifications
Ask now

Product features

The use of high-brightness backlight LCD display or touch screen display unit price, volume, amount.

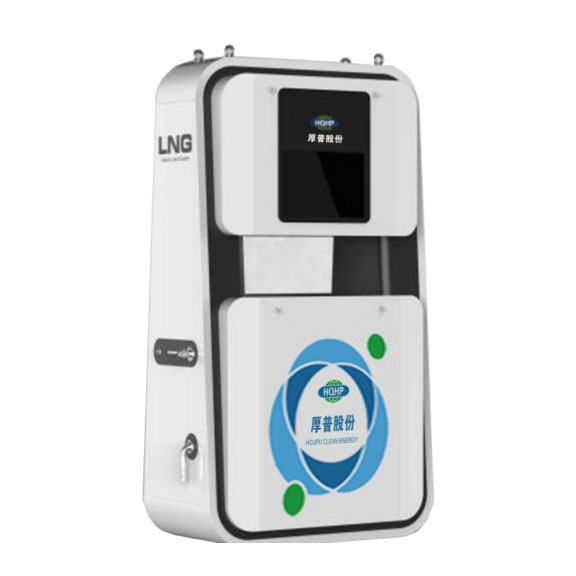

LNG Dispenser

● The whole machine adopts two explosion-proof designs of intrinsically safe and explosion-proof, and has passed the national explosion-proof certification.
● The use of automatic control of low temperature valve, with a key pre-cooling, refueling function.
● It has the function of automatic stop after refueling.

● Non-quantitative and preset quantitative refueling capability.
● There are two modes: volume measurement and mass metering.
● With pull-off protection.
● With pressure, temperature compensation function.

● It has the functions of power failure data protection and data delay display.
● Features IC card management, automatic checkout and discounts.
● With data remote transfer function.

Specifications

Applicable media	unit	Technical parameters
Single nozzle flow range	kg/min	3—80
Maximum allowable error	-	±1.5%
Working pressure/design pressure	MPa	1.6/2.0
Operating temperature/design temperature	°C	-162/-196
Operating power supply	-	185V~245V, 50Hz±1Hz
Explosion-proof signs	-	Ex d & ib mbII.B T4 Gb

mission

Efficient use of energy to improve the human environment
