LNG Powered Ship Gas Supply Skid

Подробная информация

Характер продукции

Подробная информация

Характер продукции

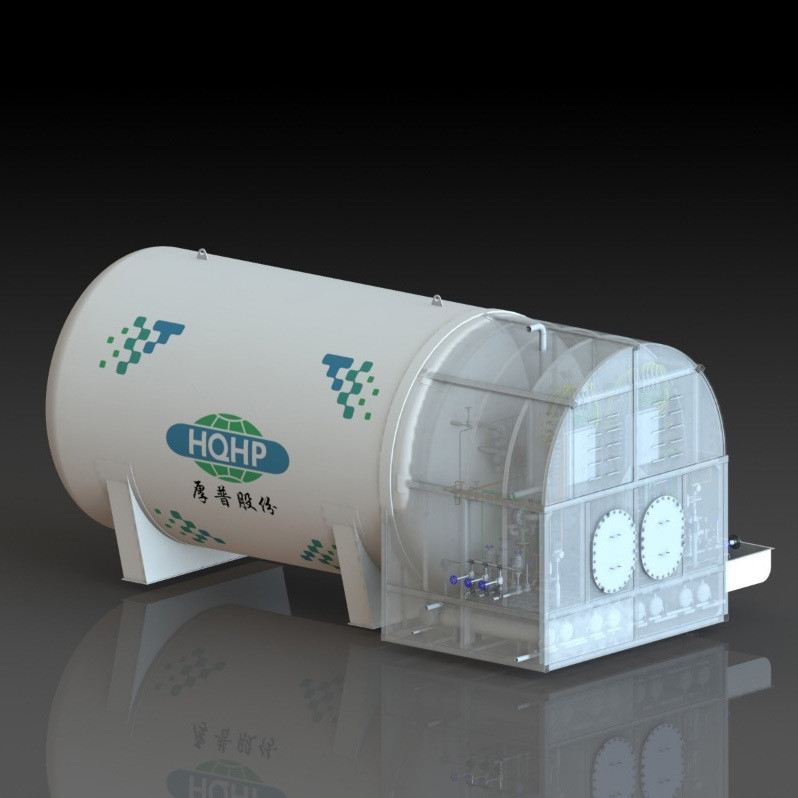

The LNG single fuel gas supply skid is composed of a fuel tank (also called “storage tank”) and a fuel tank joint space (also called “cold box”), which integrates multiple functions such as tank filling and replenishment, tank pressure regulation, LNG fuel gas supply, safe venting and ventilation, and can provide fuel gas to single-fuel engines and generators sustainably and stably.

Product features
Specifications
Ask now

Product features

Approved by CCS.

LNG single fuel powered ship gas supply skid

● Equipped with two independent gas supply systems to ensure gas supply safety.
● Use circulating water/river water to heat LNG to reduce system energy consumption.
● With the function of tank pressure regulation, it can keep the tank pressure stable.

● The system is equipped with an economical adjustment system to improve the economy of fuel utilization.
● A wide range of applications, the system gas supply capacity can be customized according to user needs.

Specifications

Model	GS400 series
Dimension(L×W×H)	3500×1350×1700 (mm)	6650×1800×2650 (mm)	6600×2100×2900 (mm)	8200×3100×3350 (mm)	6600×3200×3300 (mm)	10050×3200×3300 (mm)
Tank capacity	3 m³	5 m³	10 m³	15 m³	20 m³	30 m³
Gas supply capacity	≤400Nm³/h
Design pressure	1.6MPa
Working pressure	≤1.0Mpa
Design temperature	-196～50℃
Working temperature	-162℃
Medium	LNG
Ventilation capacity	30 times/H
Note: * Appropriate fans are required to meet the ventilation capacity. (Generally, 15m³ and 30m³ tanks are with double-sided cold boxes, and other tanks are with single-sided cold boxes)

Application

This product is suitable for inland LNG fuel powered ships and LNG fuel powered sea ships that use LNG as the only fuel, including bulk carriers, port ships, cruise ships, passenger ships and engineering ships.

mission

Efficient use of energy to improve the human environment
