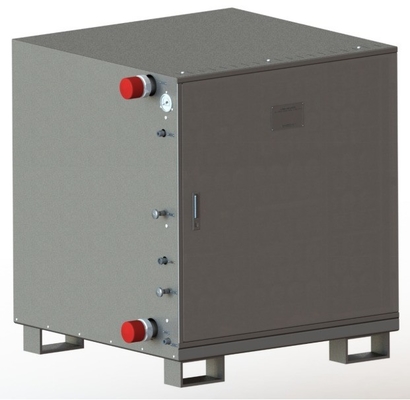

Hydrogen Storage and Supply Device Using Storage-Grade Metal Hydride（Solid State Hydrogen Storag...

Подробная информация

Характер продукции

Подробная информация

Наименование продукта:

Устройство для хранения и подачи водорода с использованием гидрида металла хранения

OEM:

Да, да.

Сценарий применения:

часы

Настраиваемый:

Да, да.

Качество:

Высокий

Жизненный цикл:

Длинный

Характер продукции

Product introduction

Using high-performance hydrogen storage alloy as hydrogen storage medium and adopting modular structure design, various hydrogen storage devices adopting metal hydride with a hydrogen storage capacity of 1~20 kg can be customized and developed, integrating 2~100 kg grade hydrogen storage system. It can be widely used in the application fields of high-purity hydrogen sources such as fuel cell electric vehicles, hydrogen energy storage systems and hydrogen storage systems of fuel cell standby power supplies.

Description	Parameters	Remarks
Rated hydrogen storage capacity (kg)	Design as required
Overall dimension (mm)	Design as required
Hydrogen filling pressure (MPa)	≤5	Design as required
Hydrogen releasing pressure (MPa)	0.1～5	Design as required
Maximum gas supply flow (g/s)	Design as required
Temperature range of circulating water for hydrogen release (°C)	50-75
Circulated hydrogen filling and releasing life (times)	≥3000	The hydrogen storage capacity is not less than 80%, and the hydrogen filling/releasing efficiency is not less than 90%.
Hydrogen filling time (min)	60	Design as required
Temperature range of circulating water for hydrogen fill (°C)	-10-30

Features

1. High volumetric hydrogen storage density, could reach liquid hydrogen density;
2. High hydrogen storage quality and high hydrogen releasing rate, ensuring the long-term full-load operation of high-power fuel cells;
3. High purity of hydrogen release, effectively ensuring the service life of hydrogen fuel cells;
4. Low storage pressure, solid-state storage, and good safety;
5. The filling pressure is low, and the hydrogen production system can be directly used to fill the solid hydrogen storage device without pressurization;
6. The energy consumption is low, and the waste heat generated during fuel cell power generation can be used to supply hydrogen to the solid hydrogen storage system;
7. Low hydrogen storage unit cost, long cycle life of solid hydrogen storage system and high residual value;
8. Less investment, less equipment for hydrogen storage and supply system, and small footprint.

mission

Efficient use of energy to improve the human environment
