high efficient high quality Hydrogen Nozzle with two pressure degrees

Подробная информация

Характер продукции

Подробная информация

Наименование продукта:

водородный сосуд

Качество:

Высокий

Степень давления:

35Mpa и 70Mpa

степень уплотнения:

Высокий

OEM:

Да, да.

Жизнь работы:

Длинный

Характер продукции

The core parts for gas dispenser of compressed hydrogen include: mass flowmeter for hydrogen, hydrogen refueling nozzle, breakaway couplin for hydrogen, etc. Among which the mass flowmeter for hydrogen is the core part for gas dispenser of compressed hydrogen and the type selection of flowmeter can directly influence the performance for gas dispenser of compressed hydrogen.

Product features
Specifications
Ask now

Product features

Patented seal structure is adopted for the hydrogen refueling nozzle.

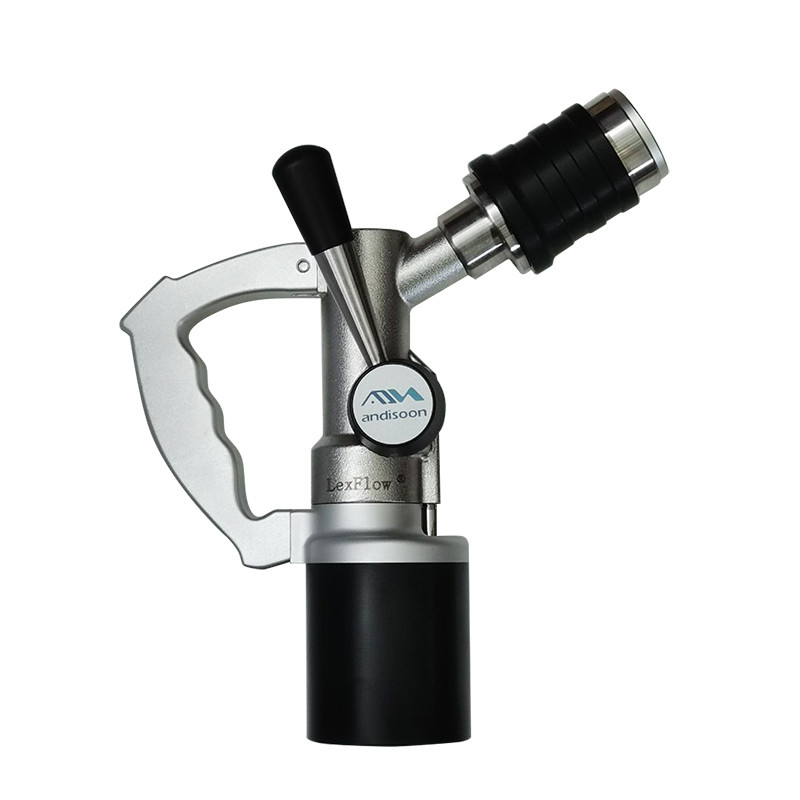

Hydrogen Refueling Nozzle

● Anti-explosion grade: IIC.
● It is made of high-strength anti-hydrogen-embrittlement stainless steel.

Specifications

Mode	T631-B	T633-B	T635
Working medium	H_2,N₂
Ambient Temp.	-40℃～＋60℃
Rated working pressure	35MPa		70MPa
Nominal diameter	DN8	DN12	DN4
Air inlet size	9/16"-18 UNF	7/8"-14 UNF	9/16"-18 UNF
Air outlet size	7/16"-20 UNF	9/16"-18 UNF	-
Communication line interface	-	-	Compatible with SAE J2799/ISO 8583 and other protocols
Main materials	316L	316L	316L Stainless Steel
Product weight	4.2kg	4.9kg	4.3kg

Application scenario

Hydrogen Dispenser Application
